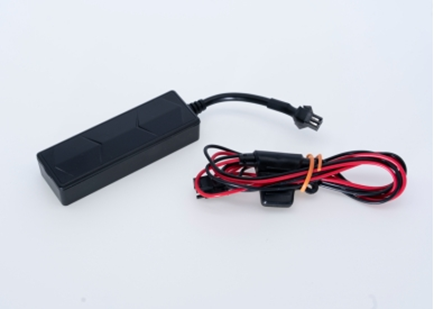

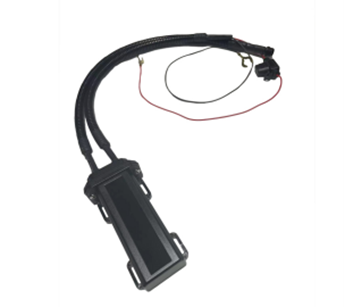

Our product is a highly modular design positioning product that supports 4G full network connectivity and GPS global satellite positioning system. It locates and monitors remote targets through mobile text messages or internet platforms, and has functions such as ACC detection, mileage statistics, forward and reverse detection, fuel consumption detection, and working hour statistics. It also notifies car owners of vehicle condition information through text messages and platforms. This product supports multiple protocols such as JT808, Beidou dual mode customization, special program customization, and remote upgrade. It is a powerful, stable, and deeply customizable professional positioning product.
Table 1,Hardware Specification
|
Item |
Specification |
|
Platform |
Air 780E |
|
Work Voltage |
DC 9~90V |
|
Work Current |
20~30mA@12V |
|
Standby Current |
1.6mA or less |
|
Positioning |
GPS/AGPS/LBS/Galileo/GLONASS/BD |
|
Positioning error |
<10m |
|
GPS antenna |
Built-in dual mode ceramic antenna,18*18*4 |
|
Cellular network |
GSM/GPRS/LTE |
|
LTE Band |
customizable |
|
Protocol |
TCP/UDP |
|
Warm Start time |
2s |
|
Cold Start time |
38s |
|
Work Temperature |
-25℃ ~ +80℃ |
|
Battery |
3.7V /50mAh Polymer Battery |
|
Size |
75(L)*25(W)*13.8(H)mm |
|
Weight |
56g |
Our product also supports vehicle status detection, including ignition/shutdown status, overspeed alarm, and ACC detection. In terms of after-sales service, we support a one-year warranty.
We have strong development and customization capabilities to meet your personalized requirements.
